iOS URL Scheme Could Let App-in-the-Middle Attackers Hijack Your Accounts

Security researchers have illustrated a new app-in-the-middle
attack that could allow a malicious app installed on your iOS
device to steal sensitive information from other apps by exploiting
certain implementations of Custom URL Scheme.

By default on Apple’s iOS operating system, every app runs
inside a sandbox of its own, which prevent all apps installed on
the same device from accessing each other’s data.

However, Apple offers some methods that facilitate sending and
receiving very limited data between applications.

One such mechanism is called URL Scheme, also known as Deep
Linking, that allows developers to let users launch their apps
through URLs, like facetime://, whatsapp://,
fb-messenger://.

For example, when you click “Sign in with Facebook” within an
e-commerce app, it directly launches the Facebook app installed on
your device and automatically process the authentication.

In the background, that e-commerce app actually triggers the URL
Scheme for the Facebook app (fb://) and passes some context
information required to process your login.

Researchers at Trend Micro noticed that since Apple does not
explicitly define which app can use what keywords for their Custom
URL Scheme, multiple apps on an iOS device can use single URL
Scheme—which eventually could trigger and pass sensitive data to a
completely different app unexpectedly or maliciously.

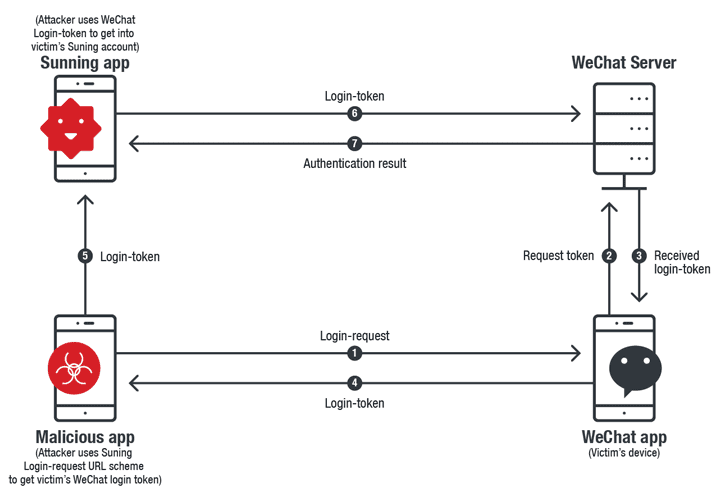

To demonstrate this, researchers illustrated an
attack scenario^[1], as shown in the image
above, using an example of a Chinese retailer app “Suning” and its
implementation of “Login with WeChat” feature, explaining how it is
susceptible to hacking.

In Short, when the Suning app users choose to access their
e-commerce account using WeChat, it generates a login-request and
sends it to the WeChat app installed on the same device using the
iOS URL Scheme for the messaging app. WeChat app then requests a
secret login token from its server and sends it back to the Suning
app for authentication.
Researchers found that since Suning always uses the same
login-request query to request the secret token and WeChat does not
authenticate the source of the login request, the implementation is
vulnerable to the app-in-the-middle attack via the iOS URL Scheme,
eventually allowing attackers gain unauthorized access to users’
accounts.

That means, a malicious app with the same Custom URL Scheme as a
targeted application can trick other apps into sharing users’
sensitive data with it or can perform unauthorized actions,
potentially resulting in the loss of privacy, bill fraud, or
exposure to pop-up ads.

Since the exploitability of this vulnerability totally depends upon
the way a URL Scheme has been implemented, app developers and
popular platforms are recommended to review their apps and validate
fix for untrusted requests.
